Carl's Place C-Series Pro Golf Simulator Enclosure Package

$5,895.00
$5,895.00 - $9,090.00
Current price $5,895.00
Free Shipping

Why Golf Simulator Enclosures Are a Strong Fit for Indoor Golf

  • Room-fit sizing - Helps match the bay, ceiling height, and screen footprint to the space before the customer commits.
  • Impact-ready protection - Frames the enclosure as the safer, cleaner way to contain shots and protect the room around the simulator.
  • Cleaner finished look - Positions the enclosure as part of a premium indoor golf room, not just a net or loose screen.
  • Setup path clarity - Keeps buyers focused on width, height, depth, screen material, and mounting fit instead of guessing.
  • Expert enclosure fit help - Call or text (855) 718-4560 and Golf Sim Genies will help confirm sizing, screen fit, and room layout before you buy.
Expert Setup Support Fit & Support Guidance Custom-Built to Order
Customize enclosure add-ons Choose enclosure add-ons Pick enclosure-specific extras now. Cart and checkout will include selected add-ons. 0 add-ons selected Selected add-ons: +$0.00

Carl's Place C-Series Pro package room fit

Confirm enclosure size, screen path, and room clearance

Use this compact guide to see what the enclosure path includes, what is still optional, and which room measurements should be checked before checkout.

What this product is for

The C-Series Pro package is for buyers who want the Pro enclosure path with guided simulator-room components around it.

Core equipment included

  • Carl's Place C-Series Pro enclosure and selected screen path
  • Selected package components shown in the builder
  • Golf Sim Genies order support

How to use this page

Choose the enclosure size and screen material that match the room, then add only the pipe, mat, projector, launch monitor, or accessory items your setup actually needs.

What you configure above

Use the builder and options above to finalize size, screen material, pipe path, and optional accessories that match the room.

Add only what the setup needs

  • Use the builder for projector, launch monitor, mat, turf, computer, cable, crossbar, or accessory choices.
  • Confirm projector throw, crossbar, and overhead launch-monitor placement before selecting mount-related add-ons.
  • Ask for a fit check before checkout if ceiling height, width, or depth is tight.

Not included unless selected

  • Items not selected in the package builder
  • Software subscriptions unless selected
  • Installation or custom service unless selected
  • Freight or lift-gate services unless shown or arranged

These are only included when selected above or clearly listed on this product page.

Room-fit checklist

  • Confirm final enclosure size, selected depth, and outer frame dimensions.
  • Plan at least 10 ft from tee to impact screen and 12-16 in behind the screen.
  • Allow 2-3 in above and on each side of the enclosure.

Planning note

Measure the finished room, not just the desired screen size. Confirm swing clearance, enclosure outside dimensions, screen distance, and rear screen clearance.

Best room fit

Best for dedicated rooms where the Pro enclosure is the base and the buyer wants a guided path for projector, launch monitor, mat, and computer choices.

Confirm every builder selection, room measurements, mount points, projector throw, and computer/software needs before checkout.

General specs

Base enclosure path Carl's Place C-Series Pro
Frame type 2 inch EMT frame path
Minimum frame 102 in H x 102 in W x 24 in D
Maximum frame 135 in H x 240 in W x 240 in D
Recommended tee distance 10 ft minimum from impact screen
Rear clearance 12-16 in recommended behind screen

How to use these specs

Specs describe the enclosure path. Screen material, pipe kits, projector placement, turf, launch monitor placement, and computer needs should still be confirmed for the final room plan.

Shipping, support, and returns

Carl's Place items can ship in multiple cartons, and some larger or freight items may require lift-gate planning. Return eligibility can vary by product condition, custom sizing, and whether the item has been opened or installed.

Ask before checkout

Contact Golf Sim Genies before checkout if any room measurement, custom size, freight need, or accessory compatibility is unclear.

Product Details

Carl's Place C-Series Pro Golf Simulator Enclosure Package

Enclosure details organized by what matters before checkout: room fit, size and material choices, protection add-ons, setup notes, and shipping support.

Carl's Place C-Series Pro Golf Simulator Enclosure Package

Use this enclosure page to confirm the bay footprint, screen or net choice, protection needs, and any separate simulator components you plan to pair with it.

  • Room clearance: Plan for safe swing space, at least 10 feet from tee to impact screen, and 12-16 inches of clear space behind the screen when using an impact screen.
  • Frame buffer: DIY and PRO enclosures need 2-3 inches of buffer on the sides and top; Curved enclosures need 2-3 inches on the sides and about 6 inches above.
  • Setup care: Use clean, unscuffed white golf balls and clean clubs to help protect the screen surface and reduce avoidable marks.

Full product details

The Carl's Place C-Series Pro Golf Simulator Enclosure Package is the premier choice for high-end commercial and luxury home golf simulator installations. The package is the ultimate one-click option to complete your simulator studio and is the pinnacle of enclosure options on the market.

The package consists of the Carl's Place Pro Golf Simulator Enclosure Kit with your choice of impact screen material and all of the recommended accessories including the Pipe Framing Kit, Back Cover Kit, Back Cover Pipe Kit, Safety Baffle, and Movable Ceiling Crossbar.

Avoid the hassle of deciding which accessories to add to your Pro Golf Simulator Enclosure — we've packaged our preferred setup configuration to create this all-inclusive enclosure package.

Offering a seamless, turf-to-screen experience with a borderless bottom, you will be fully immersed in your practice sessions. The new C-Series design has been reimagined to eliminate excessive rebound while ensuring an undisturbed and flawless golf atmosphere.

The Pro Golf Simulator Enclosure is offered in 6 sizes and 4 enclosure depths to accommodate virtually any space requirement. Choose between the Carl's Place Premium or High-Contrast Gray Golf Impact Screen, which are the two most premium options available in the Carl's Place lineup.

Please Note: The Pro Golf Simulator Enclosure Package does not come with a hitting mat, putting turf, launch monitor, projector, or software. The package only contains the necessary components and accessories to fully complete your simulator enclosure.

What's Included:

  • Carl's Place C-Series Pro Golf Simulator Enclosure Kit with Impact Screen
  • Carl's Place Pipe Framing Kit for Pro Golf Simulator Enclosure
  • Carl's Place Safety Baffle
  • Carl's Place Back Cover Kit for Pro Golf Simulator Enclosure
  • Carl's Place Back Cover Pipe Kit for Pro Golf Simulator Enclosure
  • Carl's Place Moveable Ceiling Crossbar

Before purchasing, please view the Specifications tab to confirm that the Overall Enclosure Dimensions for the Listing Size that you have selected will be suitable for your space.

Features

BlackStop™ One-Piece Knit Enclosure
Carl's Place most durable and premium enclosure surround material that is designed to keep light off of your hitting area while enhancing colors and contrast.

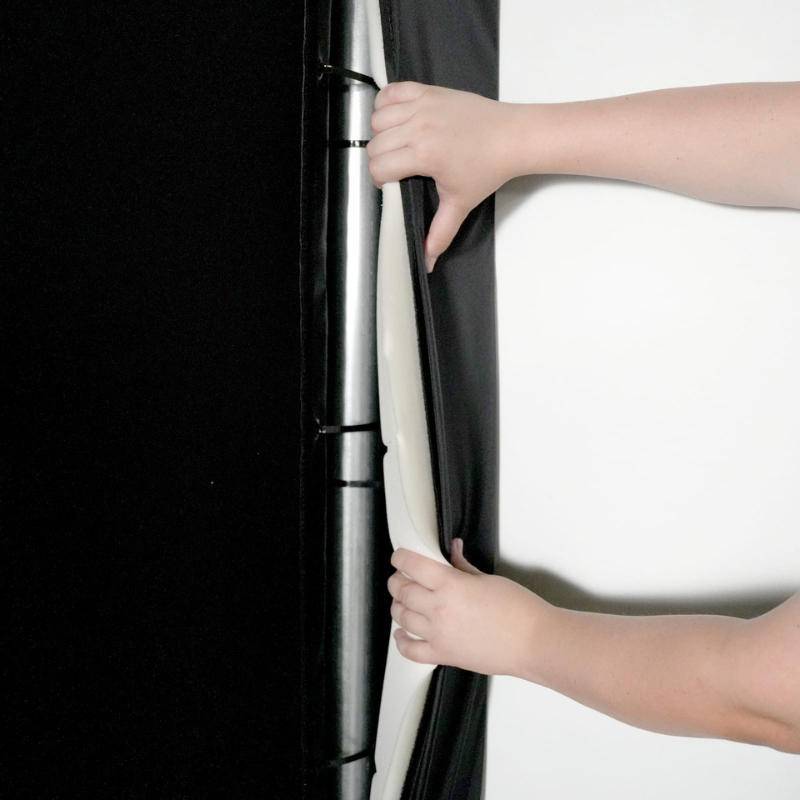

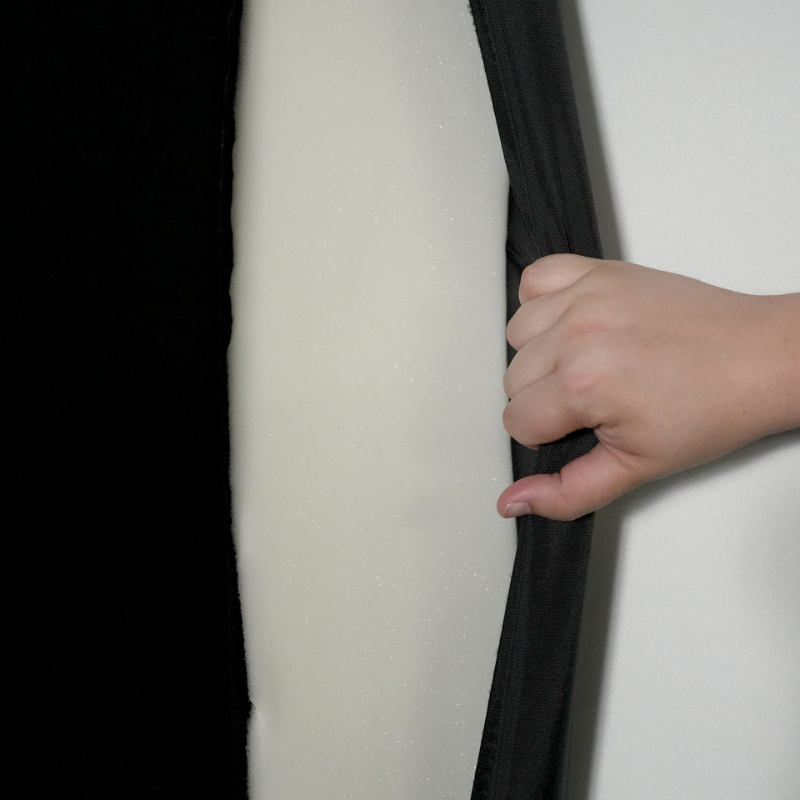

Foam Inserts Included
Pre-sized foam inserts positioned behind the flaps protect the enclosure frame from ricochets and reduce bounceback, creating a quieter and safer setup.

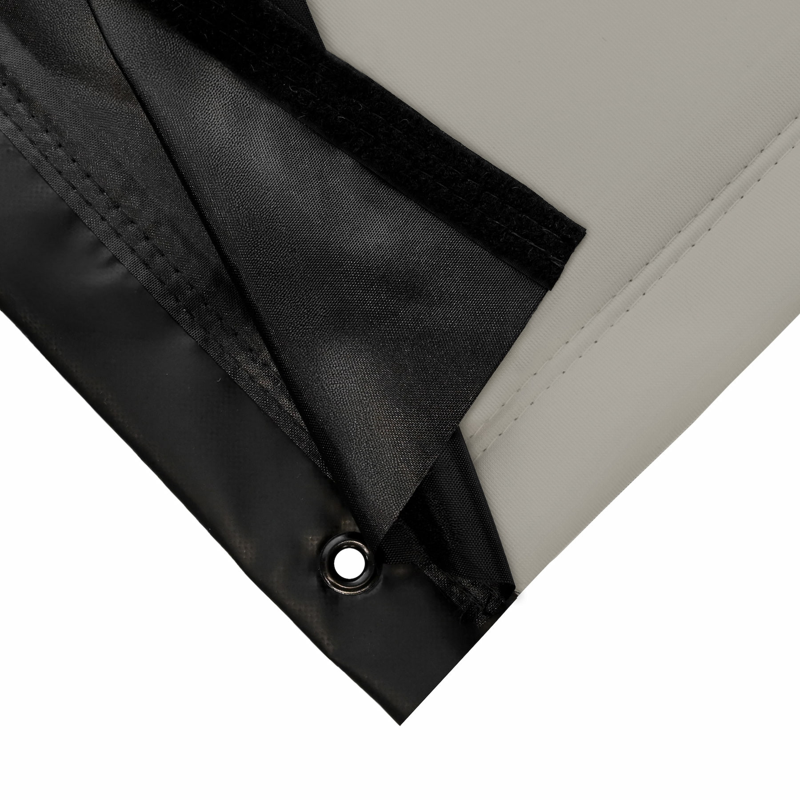

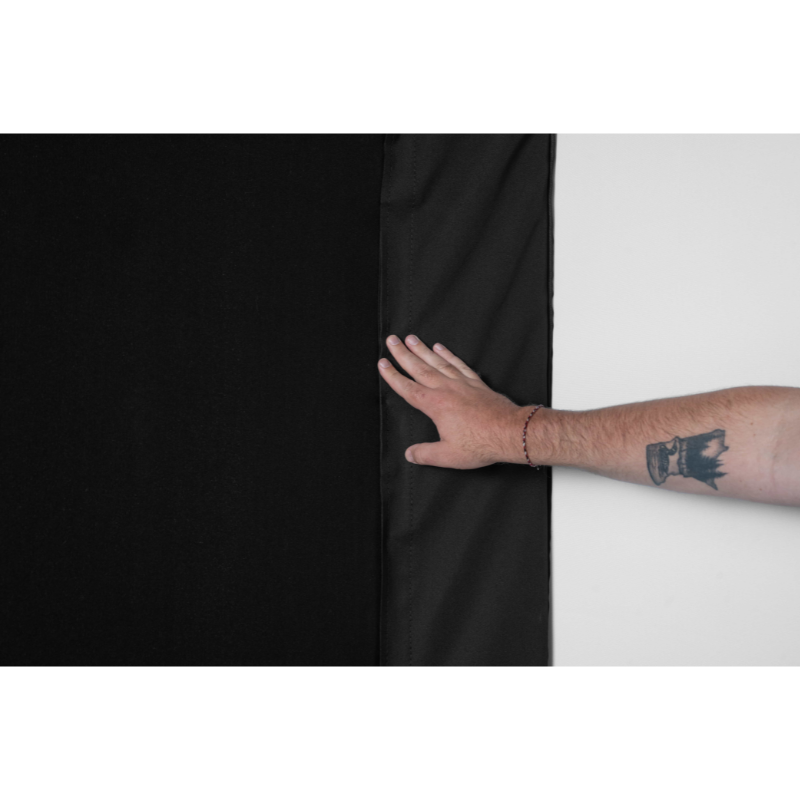

Detachable Flaps with Stronger Fasteners
Flaps are now independent from the screen and equipped with a wider hook-and-loop fastener strip that secures hold throughout repeated impacts while preserving a clean, professional appearance.

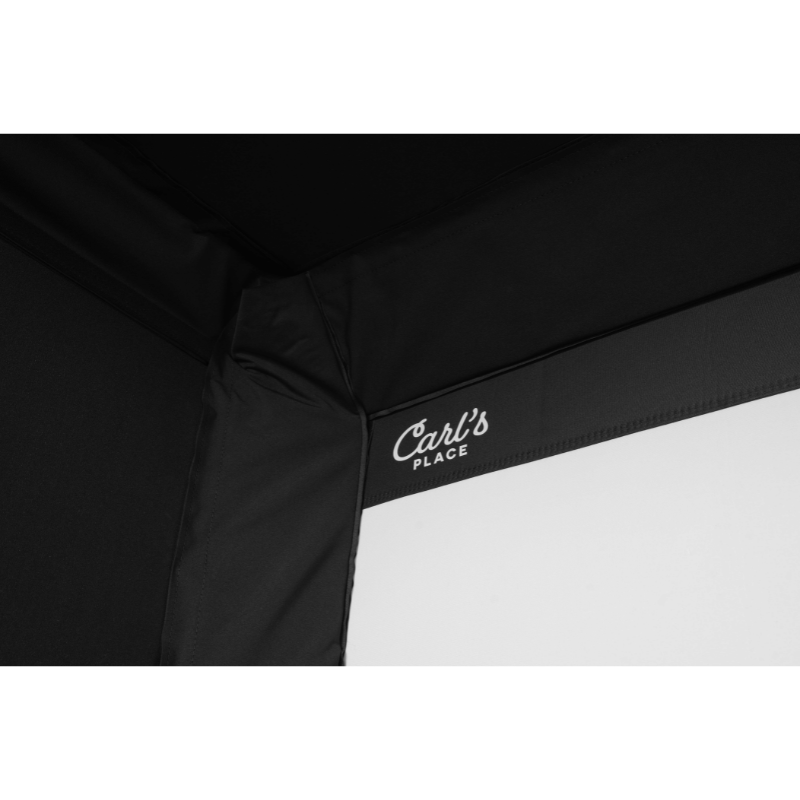

Redesigned One-Piece Ceiling and Sidewalls
Cutting setup time to about two hours for most installs, the redesigned one-pipe ceiling and sidewalls streamline assembly and feature Carl's signature BlackStop™ material.

Reduced Bounceback System
A premium three-layer impact screen, releasable zip ties, and a tensioned bottom cable work together to cushion shots and reduce rebound.

Versatile Crossbar System
The stand-alone ceiling crossbar slides forward or back for perfect placement and can accommodate overhead launch monitors, projectors, and lighting.

Pipe Framing Kit
Includes a pre-cut, labeled 2-inch EMT pipe kit for a fully plug-and-play setup. Everything arrives ready to assemble with no local sourcing required.

Back Cover Kit
The Back Cover Kit blocks ambient light from the rear side of the enclosure and creates a more finished enclosure appearance that conceals the rear pipe framing.

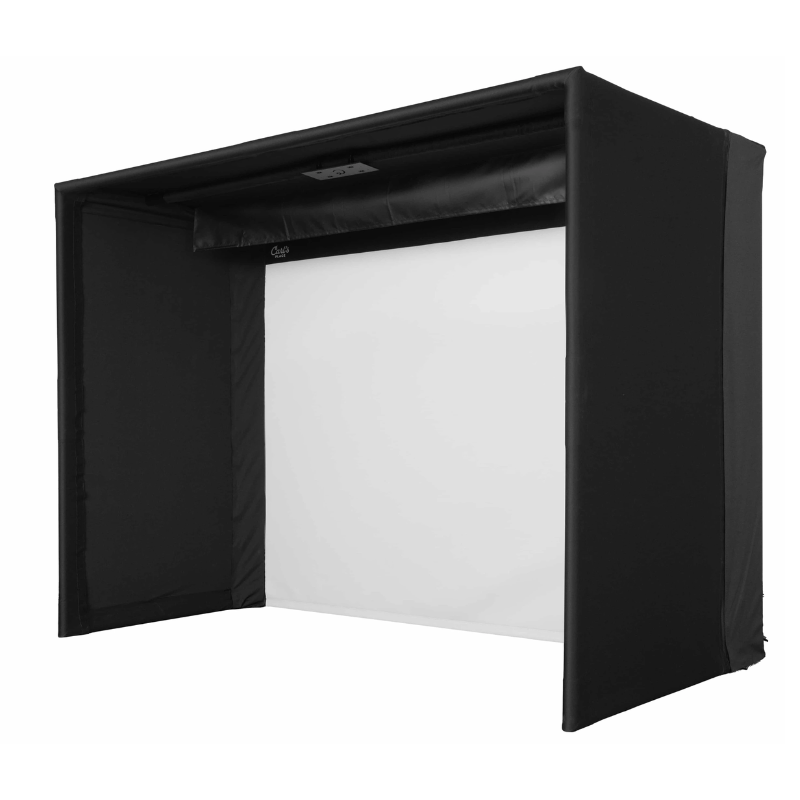

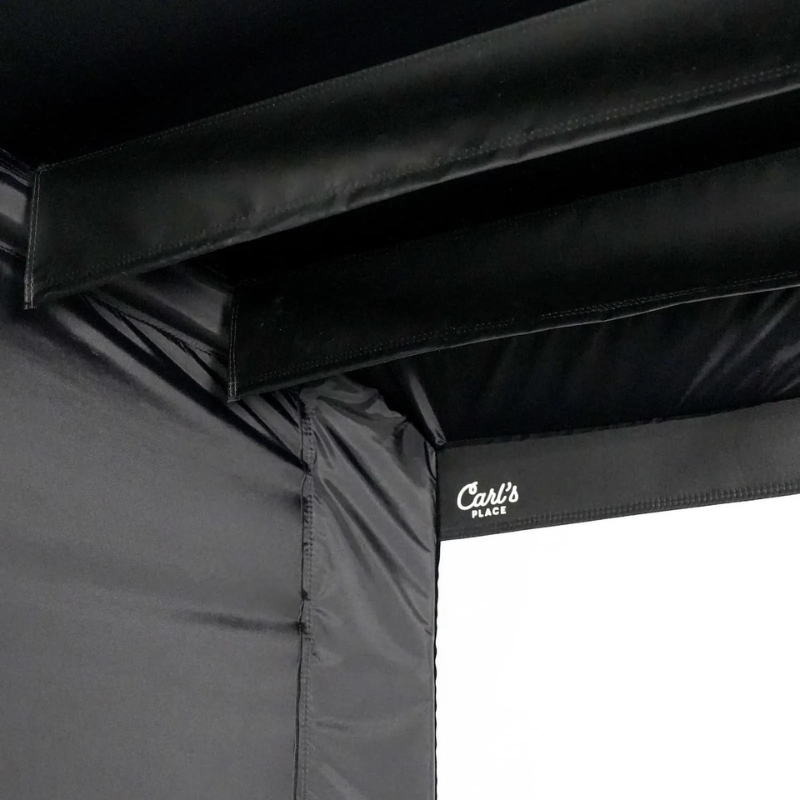

Safety Baffles
Positioned across the width of your simulator enclosure on the ceiling, Safety Baffles hang downward to catch and deflect high-angle shots that may bounce off the impact screen.

What's Included

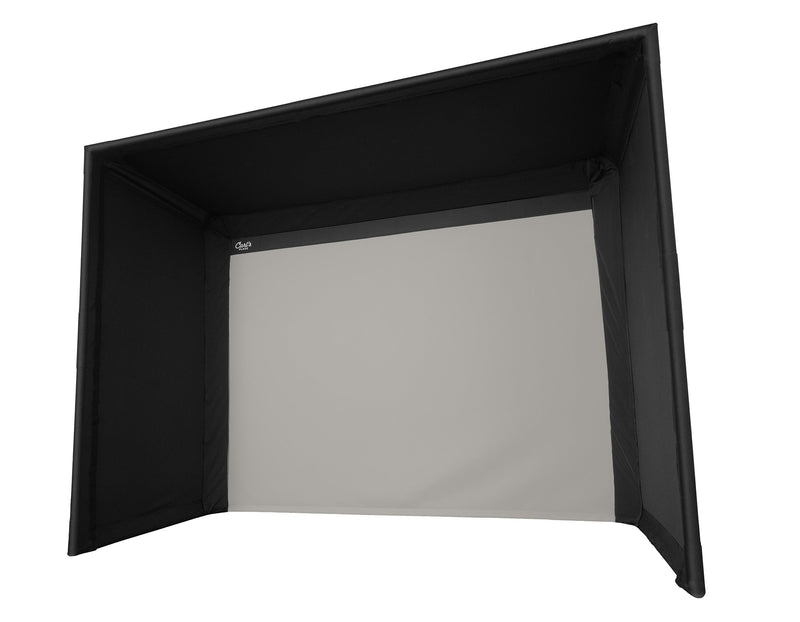

Choice of Premium or High-Contrast Gray Golf Impact Screen
The Carl's Place C-Series Pro Golf Simulator Enclosure Kit gives you the choice between Carl's Place's Premium Golf Impact Screen or the High-Contrast Gray Golf Impact Screen, both crafted from durable, three-layer full-impact material designed to deliver exceptional image quality and performance. Upgrade to High-Contrast Gray Golf Impact to elevate contrast, enhance color vibrancy, and to deliver stunning visuals in even the brightest of rooms.

Pipe Framing Kit & Connector Fittings
Size specific 2-inch EMT pipes that are pre-cut to the exact length required to fit your enclosure dimensions are included, along with connector fittings to connect the framing pipes. No pipe cutting or trip to the hardware store is required.

Foam Inserts
The Foam Inserts are included with the Pro Enclosure kit and protect your enclosure frame from errant shots. The foam inserts are the perfect length and profile for the Pro Golf Simulator Enclosure to give you extra peace of mind while hitting balls knowing that you will not damage your frame.

Safety Baffle
Safety Baffles protect the ceiling of your simulator enclosure while hitting higher shots. They are positioned across the width of your simulator enclosure on the ceiling and hang downward to catch and deflect high-angle shots that may bounce off the simulator screen.

Back Cover Kit & Back Cover Pipe Kit
The Back Cover Kit blocks ambient light from the rear side of the enclosure to ensure that you will achieve the highest image quality possible. Additionally, the Back Cover Kit provides your simulator enclosure with a polished appearance so none of the rear framing is exposed. Add the Back Cover Pipe Kit so you do not have to purchase pipe framing from your local hardware store.

Movable Ceiling Crossbar
Designed as a stand-alone component, this versatile crossbar system allows you to easily adjust its position during installation. Whether you're mounting an overhead launch monitor, projector, or lighting, the crossbar allows for perfect positioning.

Ball Bungees and Zip Ties
All of the fasteners you need to secure your enclosure and screen are included. Releasable zip ties provide you with an abundance of options for tensioning your impact screen. Enough ball bungees are included so you can experiment with finding the perfect balance of tension and slack for your screen. How close you are hitting to the screen, ball speed, clubs, and spin rate all impact the responsiveness and acoustics of your screen.

Specifications

  • Available Depths: 5', 8', 10', 15' (frame footprint extends ~9.5' Behind Screen)
  • Ceiling Buffer Space Recommended: 6–7 inches
  • Side Clearance Recommended: 2–3 inches each side (subtract 4–6 Inches from available width)
  • Minimum Rear Clearance: 9.5" behind enclosure for rear fitting
  • Crossbar Placement: Adjustable. On 15' depth enclosure, crossbar is added ~7.5' from the impact screen and is also movable.
  • Frame Material (EMT): 2-Inch EMT (True O.D. 2.197" / 55.8 mm)
  • Enclosure Cover: BlackStop™ one-piece knit ceiling and sidewalls
  • Flaps: Detachable with hook-and-loop fastener
  • Impact Screen Installation: Zip ties and bottom cable with springs and receivers
  • Screen Type: Three-layer, heavy-duty, Premium or High-Contrast Gray Golf Impact Screen

Shipping Specifications:

  • Total Boxes with Pipe Framing Kit: 8-13
  • Shipping Weight with Pipe Framing Kit: Up to 585 lbs

Please Note: Customers who are unable to unload boxes that contain the Pipe Framing Kit should add lift gate service. Please contact support@golfsimgenies.com to arrange for this.

FAQ

Q: How far away should I hit from my impact screen?
A: For the safety of both the golfer and the impact screen, we recommend placing the center of your hitting area a minimum of 10-12 feet away from the impact screen.

Q: Can I iron or steam a golf impact screen?
A: We do not recommend ironing your impact screen, as it's easy to damage the material. To avoid wrinkles, unpack your impact screen immediately upon arrival and fold it loosely if you need to store it. Most wrinkles will smooth out naturally when the impact screen is mounted with tension using zip ties. If needed, you can carefully use a consumer-grade steamer with distilled water to help remove wrinkles.

Q: Are there safety concerns when using a golf simulator?
A: Safety is a priority with any indoor golf setup. Follow the assembly manual provided with your enclosure, keep children, pets, and spectators out of swing range, and protect nearby walls, ceilings, and windows.

Q: Do I need to use a golf hitting mat?
A: Yes, a golf hitting mat provides a cushioned surface to protect your joints and allows for more realistic practice. When choosing a mat size, consider your stance and whether you need space for both right-handed and left-handed golfers.

Q: What is the difference between Carl's Enclosure Kits?
A: The Pro Golf Simulator Enclosure Kit offers premium materials, larger sizes, and extra safety features, ideal for commercial setups. Carl's DIY Golf Simulator Enclosure Kit is a simple, budget-friendly option to create a golf simulator space. The Curved Golf Simulator Enclosure Kit adds an immersive curved impact screen for a panoramic playing experience.

Q: What if the black enclosure surround material gets hit with a golf ball?
A: The enclosure surround material is not designed for direct impacts, however golf balls rebounding off the impact screen and contacting the enclosure surround should not cause issues. Thankfully, Carl's BlackStop™ material that is featured on the Pro Enclosure is their most durable.

Q: Can I get a replacement impact screen for the enclosure?
A: Yes, contact support@golfsimgenies.com for replacement impact screens.

Q: How much buffer space do I need around my enclosure?
A: We recommend allowing for 6-7 inches of ceiling buffer space to make installation easier. For width, subtract 4-6 inches from your available space to allow 2-3 inches of clearance on each side. Additionally, allow for a minimum of 9.5" behind the enclosure for the rear fitting.

Q: What pipes do I need to construct the enclosure kit frame?
A: Pro Enclosures use 2-inch EMT (True O.D. 2.197" / 55.8 mm). You can add a Pipe Framing Kit to your order for pre-cut, labeled pipes or source EMT locally.

Q: What are EMT pipes?
A: EMT stands for Electrical Metal Tubing (also called Electrical Metal Conduit). These metal pipes form the frame of your enclosure. Be sure to use EMT, not PVC, which is incompatible with the Pro Enclosure fittings.

Q: Where and how should I mount my projector?
A: Projector placement depends on your viewable screen dimensions and the throw ratio of your projector. Feel free to reach out to our team so we can provide you with the exact mounting location based upon the enclosure size and projector that you choose. Common mounting options include flush or drop mounts and floor mounts.

Q: How do the ball bungees work?
A: Insert the loop end through a grommet, pull through until the ball touches the screen, wrap the cord around the frame, and hook the loop over the ball to secure the screen.

Resources

Documents

Pro Golf Simulator Enclosure Kit Cut Sheets:

Pro Golf Simulator Enclosure Back Cover Kit Cut Sheets:
